Setup MPIO with FreeNAS and XCP-NG (XenServer) - Guide

Sat, Aug 28, 2021 2-minute read

Setup iSCSI multipathing for higher throughput and redundancy, In this guide I show the steps needed to setup MPIO using XenServer (XCP-ng) hosts and a FreeNAS storage server. I use round robin as the path selector to double iSCSi performance of my 4 disk array.

Prerequisites

  • Clean install of XCP-NG on 1+ host
  • FreeNAS server with base config for pool/disks
  • XCP-NG hosts and FreeNAS server must have 3+ NICs
  • XCP-ng Center installed (Windows GUI)

1. Configure IP interfaces

I set Xen host management IPs directly from the console after install, then added them to XCP-ng center to configure storage interfaces. FreeNAS is configured using the web interface.

  • XEN-MASTER
    • Management = 192.168.64.6
    • Storage1 = 10.0.0.6
    • Storage2 = 10.0.1.6
  • XEN-HOST-01
    • Management = 192.168.64.9
    • Storage1 = 10.0.0.9
    • Storage2 = 10.0.1.9
  • FreeNAS
    • Management = 192.168.64.5
    • Storage1 = 10.0.0.5
    • Storage2 = 10.0.1.5

2. FreeNAS iSCSI configuration

  1. Add a zvol to your existing data set. This will be the total size of you storage repository presented to you hosts. Storage > Pools > Add Zvol.

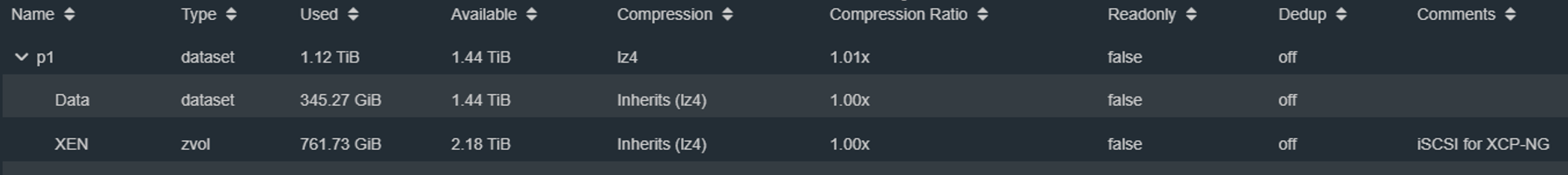

FreeNas Zvol

  1. Set iSCSI for auto start, add an extra portal IP (10.0.0.5 & 10.0.1.5), add initiator, point target to portal IPs, and finally add the zvol to your extent.

Enable Multipathing on each Xen host

  1. Login via SSH or the console tab in XCP-ng center

  2. Find the UUID using the following command

xe host-list
  1. Enter maintenance mode and migrate VMs if you have any
xe host-disable uuid=<host_uuid>
xe host-evacuate uuid=<host_uuid>
  1. Enable multipathing
xe host-param-set other-config:multipathing=true uuid=<server_uuid>
  1. Exit maintenance mode
xe host-enable uuid=<host_uuid>

Configure iSCSI interfaces and add them to the bridged network

  1. Find the interface number of each storage NIC. Then create matching iSCSI interfaces using the following commands.
iscsiadm -m iface --op new -I c_iface2
iscsiadm -m iface --op new -I c_iface3

Example:

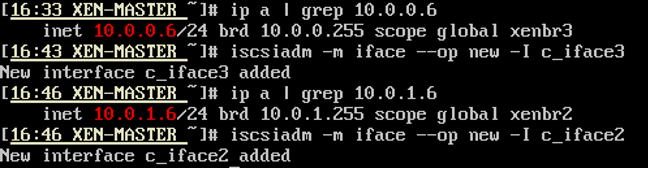

Grep for IPs

  1. Bind each interface to the Xen bridge.
iscsiadm -m iface --op update -I c_iface2 -n iface.net_ifacename -v xenbr2
iscsiadm -m iface --op update -I c_iface3 -n iface.net_ifacename -v xenbr3

Login in to the LUN and setup your config file on each host

  1. Discover iSCSI targets using your portal IPs.
iscsiadm -m discovery -t st  -p 10.0.0.5
  1. Log in to the LUN using your IQN.
iscsiadm -m discovery -t st  -p 10.0.0.5 iqn.2005-10.org.freenas.ctl:xen-target --login
  1. Edit your config file in /etc/multipath.conf

Replace everything with this:

devices {
        device {
                vendor                  "FreeNAS"
                product                 "iSCSI Disk"
                path_checker            "tur"
                path_grouping_policy    multibus
                failback                immediate
                path_selector "round-robin 0"

        }
}
  1. Reboot

Test MPIO from a Windows server VM using CrystalDiskMark

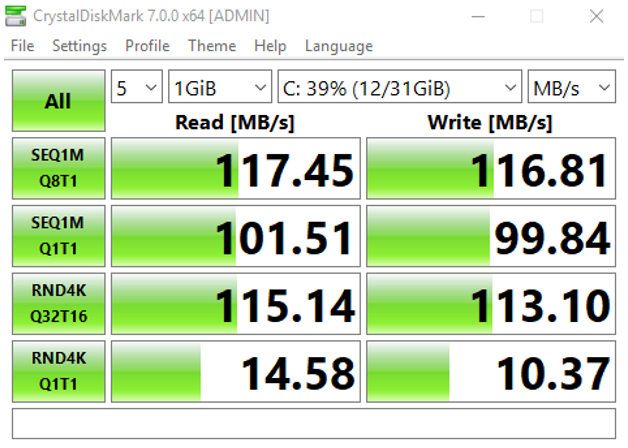

Benchmark without MPIO

Without MPIO

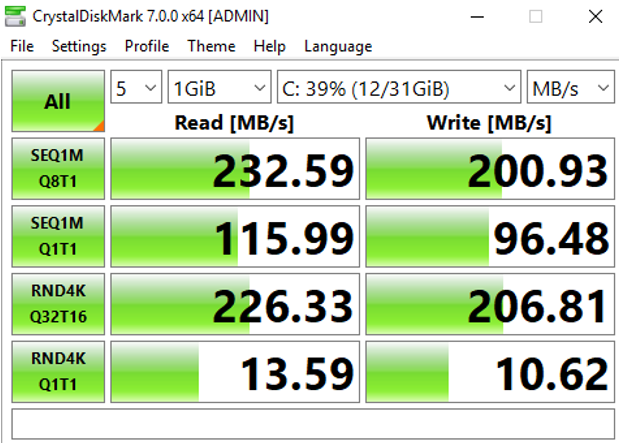

Benchmark with MPIO

Without MPIO
